Exhaust Manifold Header for Ford F-150, F-250 & Expedition 5.4L V8 (1997-2003)

Ford F-150 5.4L Exhaust Manifold Header – Fits F-250 & Expedition Too

This is a direct-fit exhaust manifold header built for the Ford 5.4L V8, covering the F-150, F-250, and Expedition across their late-90s to early-2000s production years. If your factory manifold has cracked, is leaking at the flange, or you've just had enough of the exhaust drone and hunting sound that comes with a warped stock header on a truck this age, this replaces it as a bolt-on part — no cutting, no custom fabrication.

Why the Factory Manifold on These Trucks Fails

The 5.4L Triton V8 in this generation of F-150, F-250, and Expedition is a solid engine, but the cast-iron exhaust manifolds it left the factory with are known for warping and cracking after years of heat cycling. Every time you start the truck cold and then drive it until the engine's fully warmed up, the manifold expands and contracts, and eventually that stress finds the weak point — usually right at the flange near the head. Once it cracks, you'll hear it as a ticking or popping noise on cold start that fades as the engine warms and the metal expands enough to close the gap. Left alone, it usually gets louder over time, not better.

Signs You're Dealing With a Cracked Manifold

Besides the cold-start ticking, a cracked exhaust manifold on the 5.4L usually shows up in a few other ways. You might notice a faint exhaust smell in the cabin when the windows are cracked, especially at idle, since the leak is happening before the exhaust gets routed away from the engine bay. Some owners also see a check engine light come on, because the leak lets extra outside air into the exhaust stream ahead of the oxygen sensor, which throws off the readings the engine computer uses to manage the air-fuel mixture. None of these symptoms are unique to a bad manifold on their own, but on an F-150, F-250, or Expedition with the 5.4L that's ticking on cold starts, it's usually the manifold once you rule out the easier stuff like a loose heat shield.

What This Header Is Built For

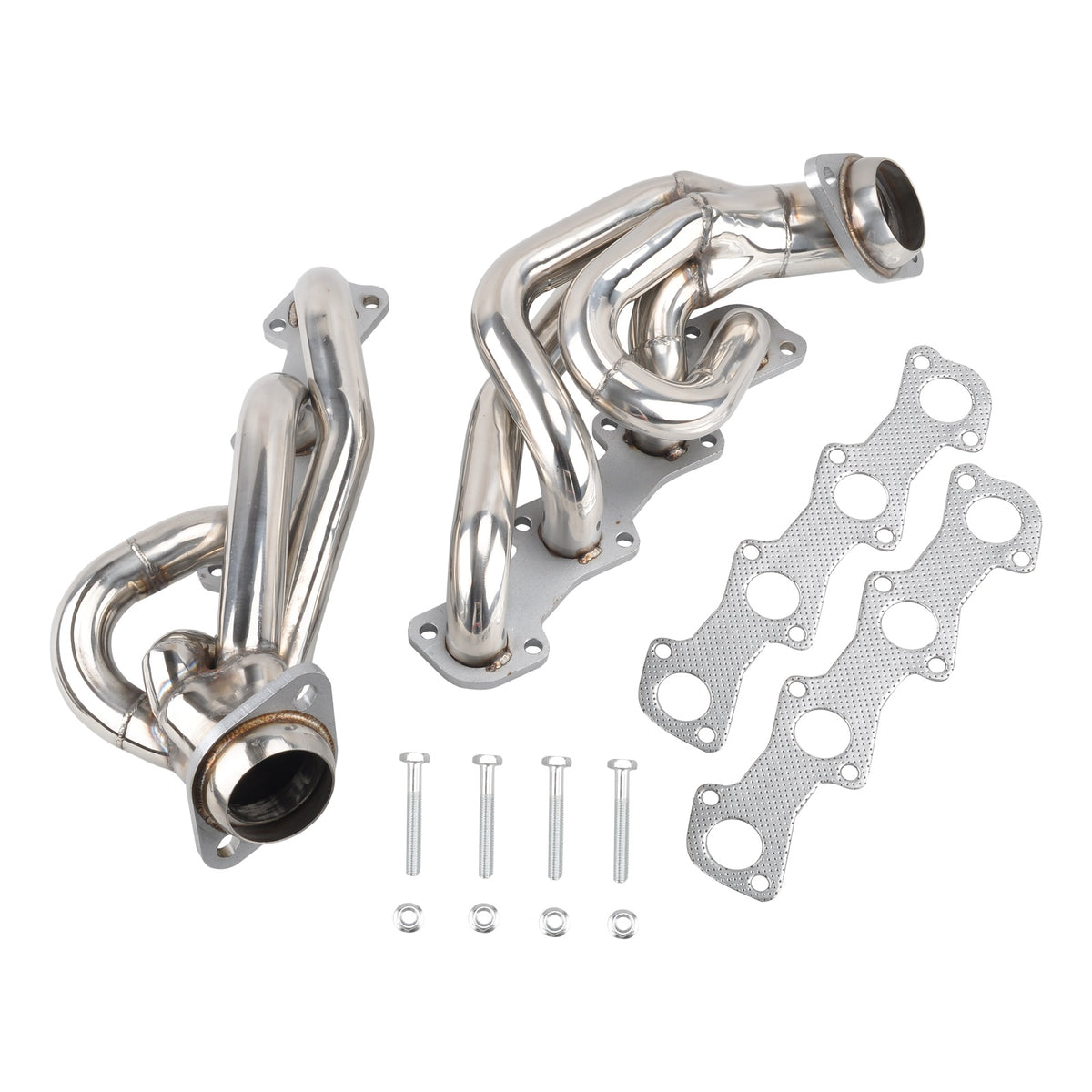

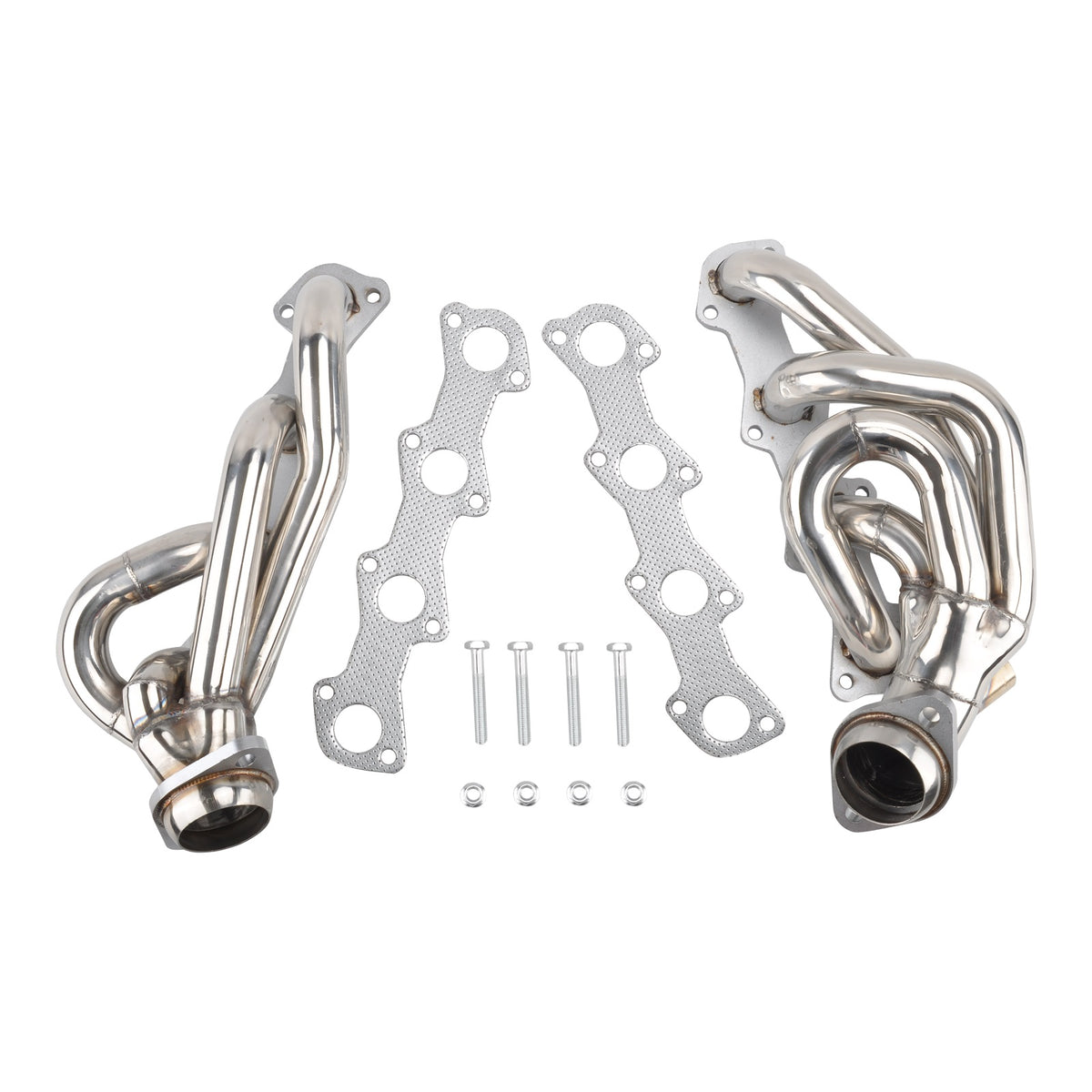

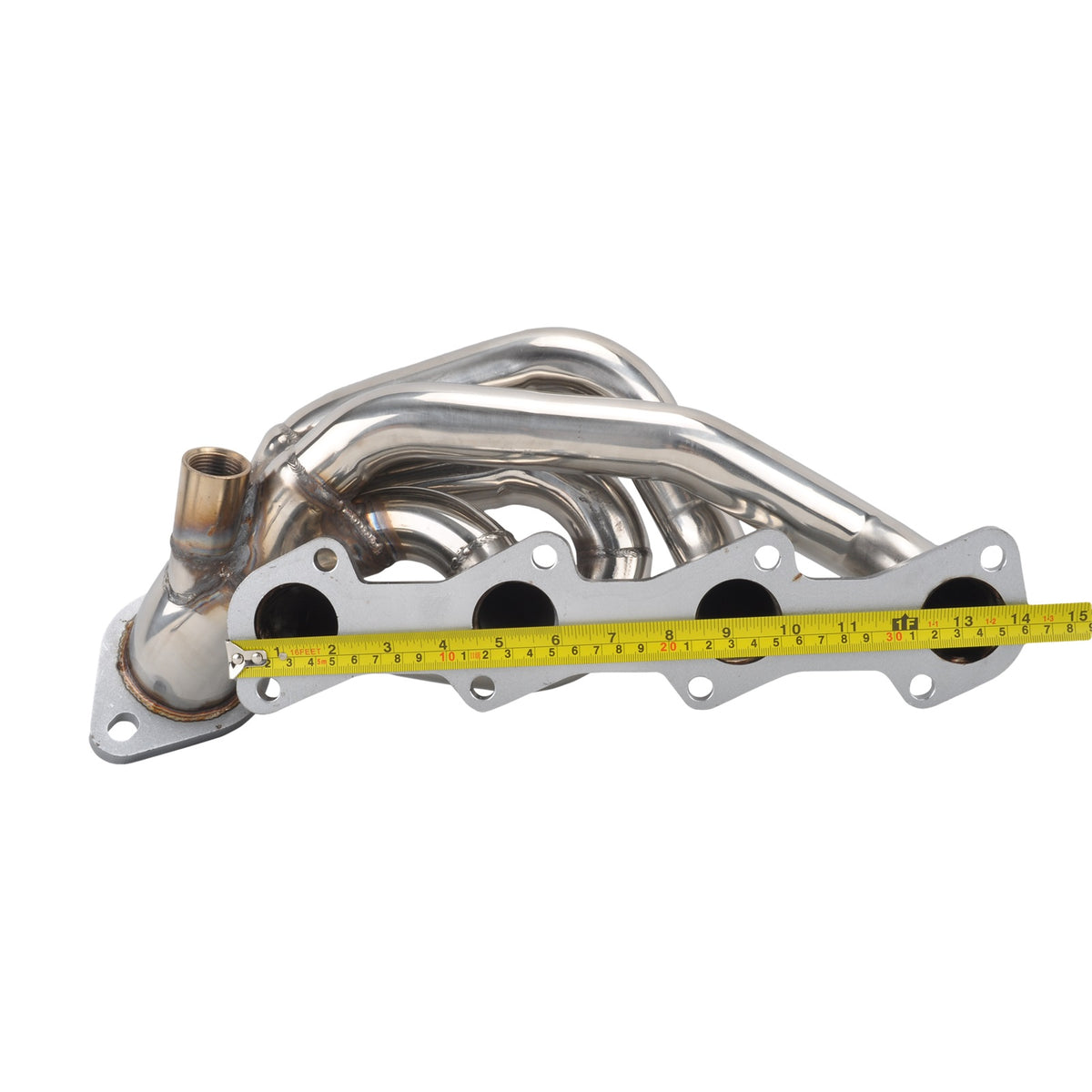

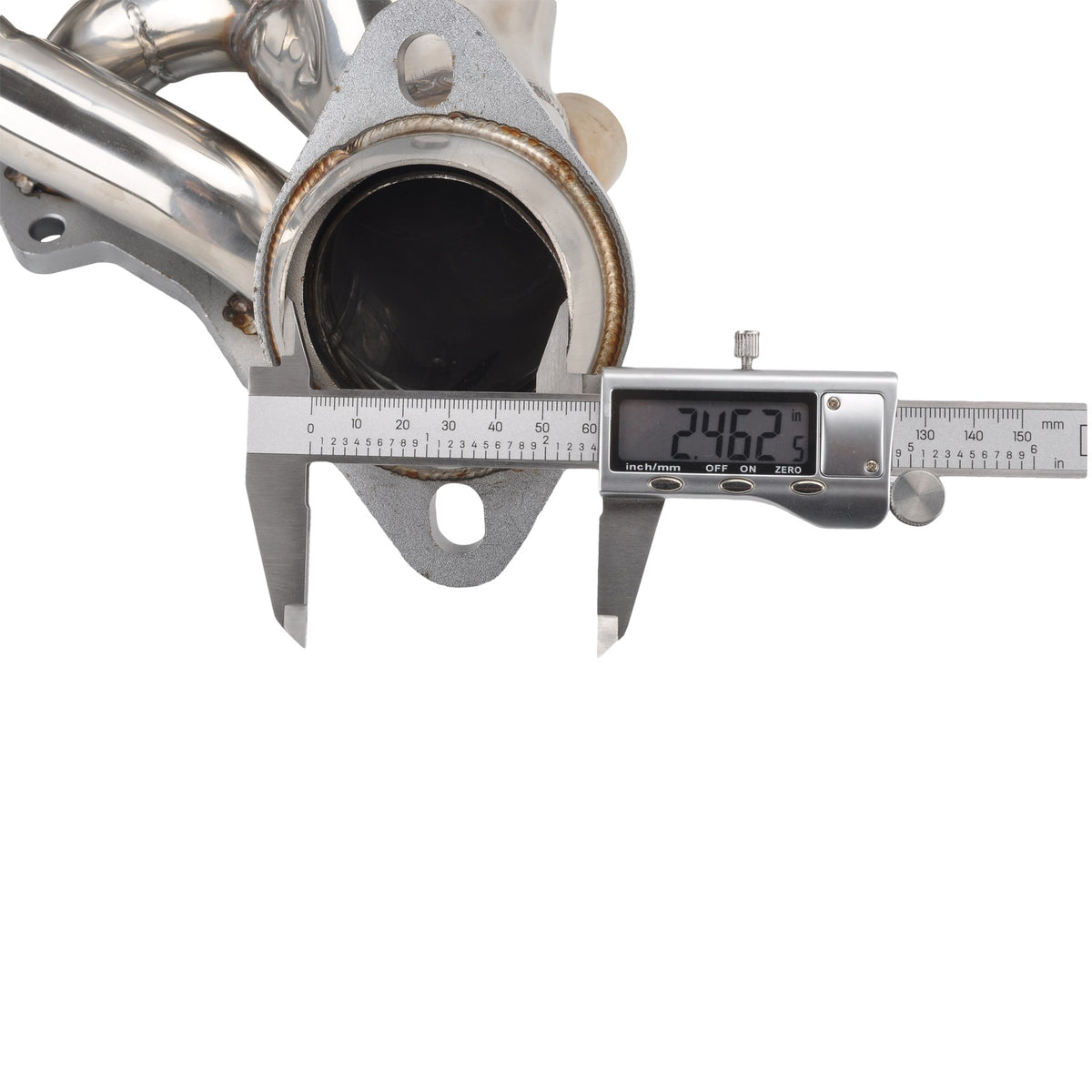

This exhaust manifold header has a 2.50" outlet size and a 1.50" primary tube size, with a head flange thickness of 7/16" and an outlet flange thickness of 3/8". Those dimensions match the factory routing, so it bolts up to the stock exhaust system without needing an adapter or a shop modifying anything to make it fit.

Fitment covers the Ford F-150 for the 1997, 1998, 1999, 2000, 2001, and 2003 model years with the 5.4L V8 engine, though there are documented exceptions: the 2000 F-150 Lariat Extended Cab Pickup 4-Door 5.4L, the 1997 F150 XLT, and the 2003 F-150 Lariat Extended are not covered. On the F-250 side, it fits 1997, 1999, 2000, 2001, 2002, and 2003 models with the 5.4L V8, excluding the 2001 F-250 and the 2002 F-250 Super Duty XLT Extended Cab Pickup 4-Door 5.4L 330 cubic-inch V8 gas SOHC naturally aspirated configuration. For the Expedition, it covers 1998 through 2003 with the 5.4L V8 across the board. Because Ford changed trim-specific exhaust routing more than once during these years, it's worth double-checking your exact year, trim, and cab configuration against these exceptions before you order, or reaching out through our request a part page if you're not sure your specific build is covered.

Specifications

• Outlet Size: 2.50"
• Primary Tube Size: 1.50"
• Head Flange Thickness: 7/16"
• Outlet Flange Thickness: 3/8"
• Fitment: Ford F-150 (1997-2001, 2003), Ford F-250 (1997, 1999-2003), Ford Expedition (1998-2003), all 5.4L V8 — see listed exceptions above

Installation Notes

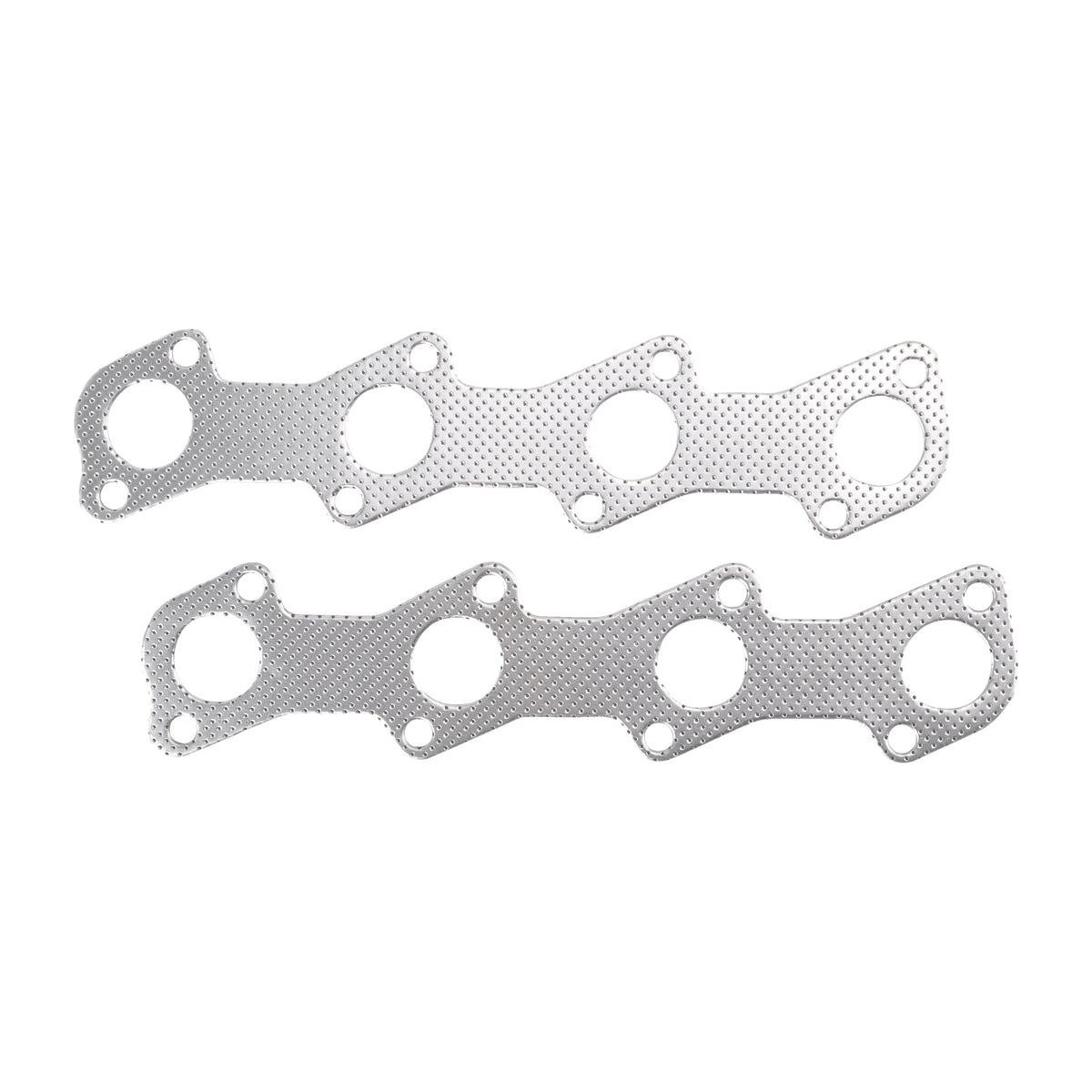

This is a manifold-only replacement, so you'll be working with the factory downpipe and gaskets unless you're replacing those separately while you have access. Most people doing this in a home garage budget a full day for it, mainly because reaching the rear manifold bolts on a V8 usually means working from underneath and sometimes pulling a wheel or the starter for clearance, not because the header itself is complicated to install. New gaskets and fresh manifold bolts (not the old, heat-cycled ones) go a long way toward preventing an exhaust leak from showing up again a few months down the road, since reusing bolts that have already stretched from years of heat cycling is one of the more common reasons a "fixed" manifold starts ticking again a season later.

It also doesn't hurt to soak the manifold bolts and studs in penetrating oil the night before if the truck has any age or rust on it. Rounding off a stuck bolt down in that engine bay turns a straightforward swap into a much longer afternoon, and a little patience up front usually saves more time than it costs.

Fit Confidence and Support

Because this engine and body combination spans several model years with a handful of trim-specific exceptions, we'd rather you ask before you order than deal with a return afterward. Our FAQ page covers the fitment questions we hear most often on this exact part, and our warranty information page explains what's covered if something isn't right. You can also reach us directly through our contact page.

Shipping and Order Tracking

Our shipping information page has our current processing times, and once your header is on its way you can follow it from our track your order page. We ship worldwide, so this part reaches customers well beyond wherever our warehouse happens to be.

More for Your Truck

This header lives in our Exhaust & Emissions collection alongside the other manifolds, headers, and exhaust components we stock for a range of vehicles. If you want a deeper technical breakdown of how an exhaust manifold does its job and why the routing matters for how the engine breathes, this reference on exhaust manifold design is a solid starting point.

If your F-150, F-250, or Expedition has that telltale cold-start tick under the hood, a new exhaust manifold header built to the factory 2.50" outlet spec is the straightforward fix, and it's a part we keep in stock precisely because this failure is so common on the 5.4L V8.
