Cooling System

Cooling System Parts That Protect Your Engine From Heat

An engine turns only about a third of its fuel into motion. Most of the rest becomes heat, and if that heat is not carried away, the engine overheats in minutes. Warped cylinder heads, blown head gaskets and seized pistons are the kind of damage that follows. Your cooling system is what stands between normal driving and a very expensive repair bill. This collection brings together cooling system parts for cars, SUVs, pickups and diesel trucks: radiators, cooling fans and fan clutches, oil coolers, filler necks, radiator shutters, support grilles and more. We add new cooling system parts regularly, so even if you do not see your vehicle today, keep reading. The advice below applies to almost any vehicle on the road, and we can source parts on request.

We will walk you through how the system works, the warning signs that something is failing, how to choose the right replacement, and how to fit and bleed it properly so the problem does not come back.

How an Engine Cooling System Works

Most modern engines are liquid-cooled. A water pump, driven by a belt, a timing belt or an electric motor, pushes coolant through passages in the engine block and cylinder head. The coolant absorbs heat, then flows through the upper radiator hose to the radiator at the front of the vehicle. Air passing through the radiator fins, helped by a cooling fan at low speed, pulls heat out of the coolant. The cooler liquid returns to the engine through the lower hose, and the cycle repeats.

A thermostat sits between the engine and the radiator. When the engine is cold, it stays closed so the engine warms up quickly. Once operating temperature is reached, usually around 90 to 105°C (195 to 220°F), it opens and lets coolant flow to the radiator. A pressure cap keeps the system pressurized, which raises the boiling point of the coolant. An expansion tank or overflow bottle catches coolant as it expands and returns it as the engine cools. Many vehicles also use the coolant to warm the cabin through the heater core, to cool the transmission fluid and, on turbocharged engines, to cool the turbo.

Main Cooling System Parts

Part What it does Typical sign of failure
Radiator Releases heat from coolant to the air Leaks, cracked tanks, overheating in traffic
Water pump Circulates coolant Leak from weep hole, whining bearing, overheating
Thermostat Controls coolant flow to the radiator Gauge stays low or climbs high, poor heater
Cooling fan or fan clutch Pulls air through the radiator at low speed Overheating at idle or with AC on
Radiator cap Holds pressure, raises boiling point Coolant loss, boiling over
Expansion tank Holds extra coolant Cracks, leaks, low coolant warning

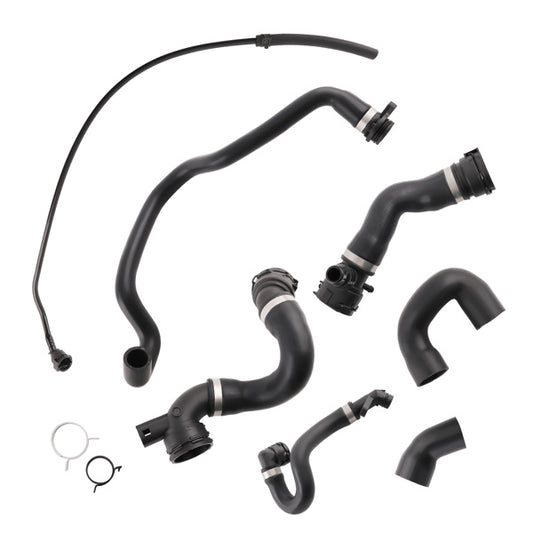

Hoses Carry coolant between parts Swelling, cracks, leaks at clamps
Oil cooler Uses coolant to control oil temperature Oil in coolant or coolant in oil, external leaks
Radiator shutter Opens and closes grille airflow for efficiency Fault light, overheating, poor fuel economy

Cooling System Parts Available Now

More cooling system parts, including water pumps, thermostats, expansion tanks and complete radiators for many makes, are added often. If yours is missing, use request a part.

Warning Signs of Cooling System Trouble

  • Temperature gauge above normal or a red coolant warning light.
  • Steam from under the hood or a hissing sound after you stop.
  • Sweet smell inside or outside the car, which is coolant evaporating.
  • Puddles of green, orange, pink or blue fluid under the front of the vehicle.
  • Low coolant warning or having to top up regularly.
  • Heater blowing cold air when the engine is warm, often a sign of low coolant or a stuck thermostat.
  • Fan running constantly or not at all.
  • White smoke from the exhaust with coolant loss, which can mean a head gasket problem.
  • Milky residue under the oil filler cap, a sign coolant and oil are mixing.

If the gauge climbs into the red, pull over safely and switch off the engine. Never open the radiator cap while the engine is hot. Pressurized coolant can cause serious burns.

How to Choose the Right Cooling System Parts

  1. Match year, make, model and engine. Radiators and fans often differ between engine sizes.
  2. Check the transmission. Automatic vehicles often have a transmission cooler built into the radiator tank, with extra fittings.
  3. Look at towing packages. Heavy-duty cooling options use thicker radiators and stronger fans.
  4. Compare core size. Height, width and thickness must match to fit the mounts.
  5. Inlet and outlet positions. Hose connections must line up with your hoses.
  6. Electrical connectors. Electric fans and shutters must plug into your wiring without changes.
  7. OE reference. Check the number on our listing against your original part.

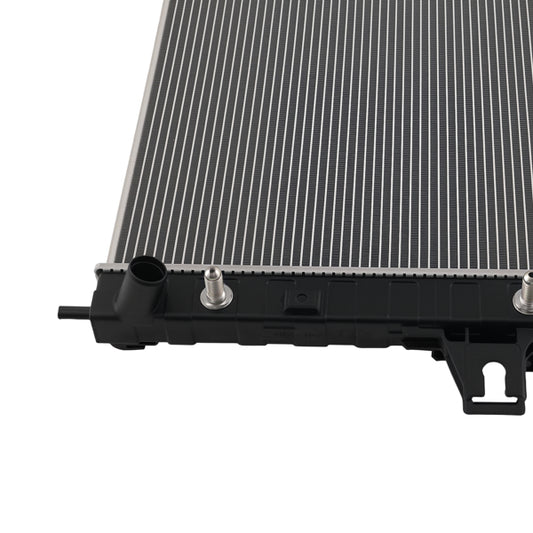

Aluminum vs Plastic-Tank Radiators

Most factory radiators use an aluminum core with plastic end tanks. They are light and cheap to produce, but the plastic tanks can crack with age and heat cycles. All-aluminum radiators replace the plastic tanks with welded aluminum ones, which handle heat and pressure better and last longer, especially in hot climates or on vehicles that tow. For many owners, an aluminum radiator is a worthwhile upgrade when the original fails.

Replacing a Radiator: Step by Step

  1. Let the engine cool completely. Park on level ground.
  2. Place a clean drain pan under the radiator and open the drain plug or remove the lower hose.
  3. Remove the upper hose, transmission cooler lines if fitted (catch the fluid), and any electrical connectors on the fan.
  4. Unbolt the fan shroud or electric fan assembly.
  5. Remove the radiator mounting brackets and lift the radiator out carefully.
  6. Transfer any brackets, rubber mounts or sensors to the new radiator.
  7. Install the new radiator, reconnect lines and hoses with new clamps where needed.
  8. Refill with the correct coolant mix, usually 50/50 coolant and distilled water unless premixed.
  9. Bleed the system to remove air pockets, using bleed screws or a spill-free funnel.
  10. Run the engine with the heater on high until the thermostat opens and the fan cycles. Check for leaks and top up.

Bleeding Air From the Cooling System

Trapped air is the most common reason a freshly repaired cooling system still overheats. Air pockets collect at high points such as the cylinder head and the heater core, blocking flow and giving false temperature readings. Many vehicles have bleed screws on the thermostat housing or heater hose. A spill-free funnel that fits on the radiator neck lets you run the engine with the funnel above the highest point so bubbles escape. Squeezing the upper hose helps push air out. Take your time; a properly bled system rewards you with steady temperatures and hot cabin heat.

Choosing the Right Coolant

Coolant chemistry matters. Older vehicles used green inorganic coolant that needed changing every two years. Modern vehicles use long-life coolants based on organic acid technology (OAT) or hybrid formulas (HOAT, P-HOAT, Si-OAT). They come in different colors, but color alone is not a reliable guide. Check the owner's manual or the reservoir cap for the specification. Mixing incompatible coolants can create sludge that clogs the radiator and heater core. When you replace cooling system parts, drain and refill with the correct type rather than topping up with something different.

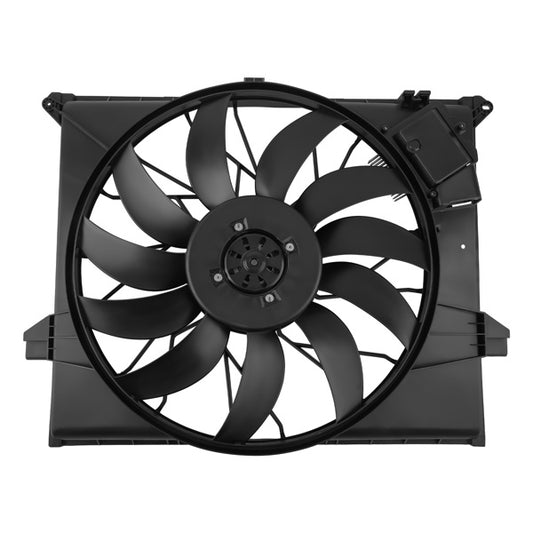

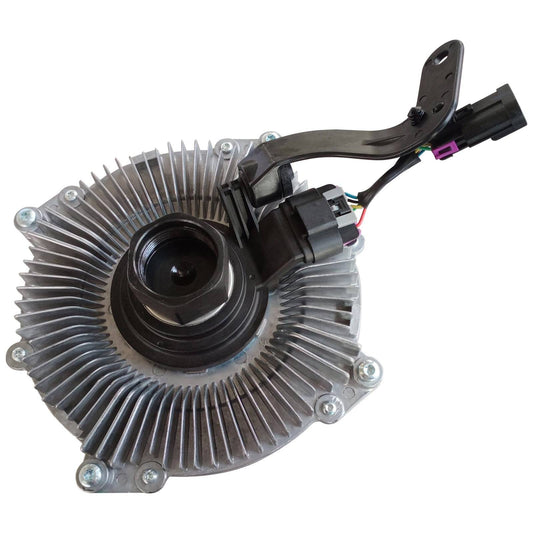

Cooling Fans and Fan Clutches

At highway speed, air rushing through the grille does most of the cooling. In slow traffic or at idle, the fan has to do the work. Many trucks use a belt-driven fan with a viscous clutch that locks up as temperature rises. When the clutch wears, the fan spins too slowly and the engine overheats in traffic or when towing. A good test is to spin the fan by hand with the engine off and cold: it should turn with some resistance, not freewheel for several turns. The fan clutch for the 6.7L Cummins Ram is a common replacement on hard-working diesel trucks.

Most cars use electric fans controlled by the engine computer or a temperature switch. If the fan does not come on when the engine is hot or when the AC is switched on, check the fuse, relay and connector first, then the fan motor itself. On BMWs, the large electric fan is a known failure point; our 335i and 335d fan is a direct replacement.

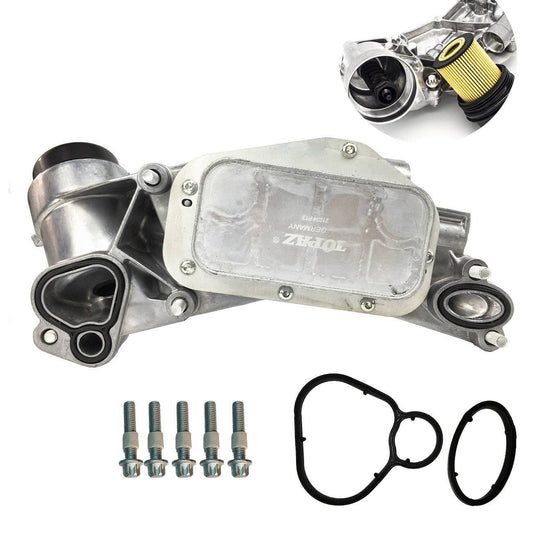

Oil Coolers

Many engines use an oil cooler, often built into the oil filter housing, to keep oil at a stable temperature. When its internal seals fail, oil and coolant can mix, or the housing can leak externally. The Chevy Cruze is known for this, which is why the Cruze oil cooler and filter housing is one of our popular parts. If you see milky oil or oily coolant, stop driving and investigate; mixed fluids damage bearings quickly.

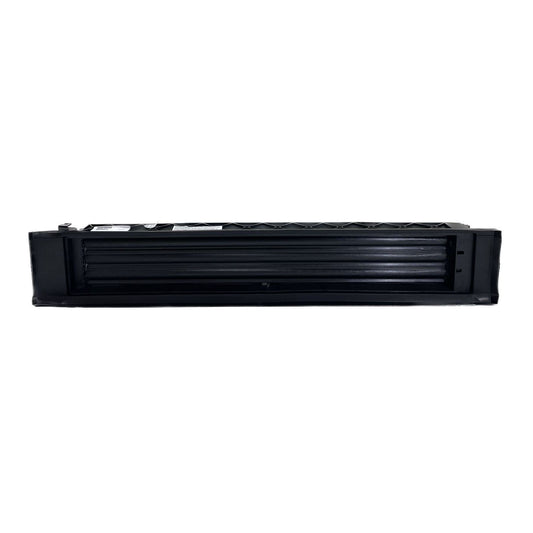

Active Grille Shutters

Newer vehicles use radiator shutters that close at highway speeds to improve aerodynamics and fuel economy, then open when extra cooling is needed. If a shutter sticks closed, the engine can overheat; if it sticks open, a warning light appears and fuel economy drops. Replacing the shutter assembly, such as the Altima lower shutter, usually clears the fault.

Why Cooling System Parts Fail

  • Age and heat cycles. Plastic tanks, housings and necks become brittle after years of heating and cooling.
  • Old coolant. Additives that prevent corrosion wear out. Acidic coolant eats metal and rubber.
  • Wrong coolant or tap water. Minerals in hard water leave scale that blocks narrow radiator tubes.
  • Debris in the radiator fins. Leaves, insects and mud block airflow.
  • Electrolysis. Poor engine grounds can let current flow through the coolant and pit aluminum parts.
  • Overheating events. One bad overheat can warp parts and weaken seals.
  • Accident damage. Radiators sit at the front and are easily punctured.

Cooling System Parts by Vehicle Type

Everyday Cars

Compact and mid-size cars have small, efficient cooling systems. Plastic thermostat housings and expansion tanks are the most common failures. Replace the thermostat when you replace a radiator, since a worn thermostat can undo a new radiator's work.

SUVs and Crossovers

Heavier vehicles with V6 engines generate more heat and often carry a transmission cooler in the radiator. Keep an eye on the radiator end tanks and the water pump. Our Grand Cherokee radiator is a typical replacement for older SUVs. See Jeep parts for more.

Pickups and Towing Vehicles

Towing heavy loads up hills pushes the cooling system to its limit. Upgrading to an all-aluminum radiator, checking the fan clutch and using the correct coolant are the best ways to avoid overheating. See towing accessories and Ram truck parts.

Diesel Trucks

Diesel engines have huge cooling systems with multiple radiators, intercoolers and sometimes separate transmission and fuel coolers. They also produce enormous heat under load. Fan clutches, water pumps and EGR coolers need regular attention. Browse diesel truck parts.

Turbocharged Engines

Turbos run extremely hot, and many use coolant lines to protect the bearings. A failing cooling system can kill a turbo. If you have a turbo engine, take overheating seriously. Read our guide on turbocharger replacement and see turbochargers.

Hybrid and Electric Vehicles

Hybrids have separate cooling loops for the engine, the inverter and sometimes the battery. EVs use coolant to manage battery temperature. Electric coolant pumps are common failure points. See EV and hybrid parts.

Cooling Maintenance Schedule

TaskHow often
Check coolant level (engine cold)Monthly and before long trips
Inspect hoses and clampsEvery oil change
Clean radiator finsYearly, more often on dusty roads
Coolant replacementAs the manual says, often 5 years or 100,000 miles for long-life types
Thermostat and radiator capWith coolant changes on older vehicles
Water pumpWith the timing belt on belt-driven pumps

Real Situations and the Cooling System Parts That Fix Them

"My truck only overheats when towing up hills."

The cooling system is just short of capacity. A partly clogged radiator, a worn fan clutch or old coolant are the usual reasons. Fit a new radiator and fan clutch, flush and refill the coolant, and the gauge should stay steady even with a trailer behind.

"My car overheats in traffic but is fine on the highway."

That points straight to the cooling fan. At speed, air flows through the radiator by itself; in traffic, the fan must do it. Check whether the fan runs when the engine is hot or when you turn the AC on. If not, check the fuse and relay, then replace the fan.

"My heater blows cold and the gauge goes high."

Low coolant or an air pocket. Find the leak, fix it, refill and bleed the system. If the coolant level is fine, the thermostat may be stuck closed.

"My temperature gauge never rises to normal."

The thermostat is stuck open. The engine runs cold, uses more fuel and the heater stays weak. Replace the thermostat and its gasket.

"I see milky oil on the dipstick."

Coolant is mixing with oil. On many engines the oil cooler is the cause, which is far cheaper than a head gasket. Pressure test the system to find out.

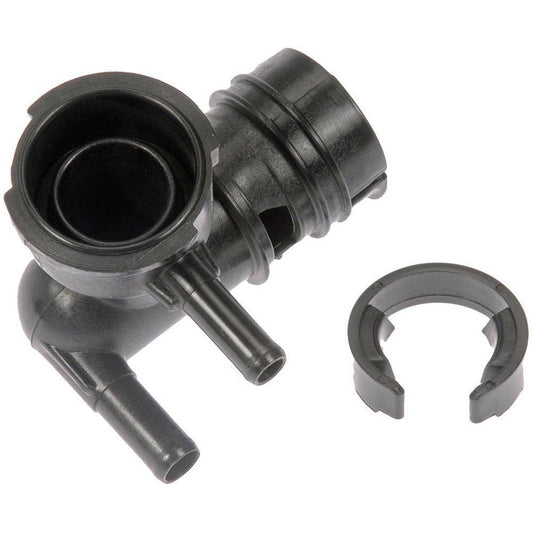

"My radiator neck snapped when I took the cap off."

Old plastic becomes brittle. A replacement filler neck or a new radiator solves it. Handle plastic cooling parts gently on older vehicles.

Cooling System Glossary

  • Core: the finned middle part of the radiator.
  • End tank: the plastic or aluminum tank at each side of the core.
  • Weep hole: a small hole on a water pump that drips when the seal fails.
  • Fan clutch: a temperature-controlled coupling that engages a belt-driven fan.
  • Bypass: a passage that lets coolant circulate through the engine while the thermostat is closed.
  • Pressure test: a check that pressurizes the system to find leaks.
  • OAT, HOAT: types of long-life coolant chemistry.

Cooling System Buying Checklist

  1. Vehicle year, make, model and engine.
  2. Automatic or manual, and towing package.
  3. OE number or core dimensions.
  4. New hose clamps, thermostat and cap.
  5. The correct coolant type and distilled water.
  6. A spill-free funnel for bleeding.

Frequently Asked Questions About Cooling System Parts

How long does a radiator last?

Often 8 to 10 years or 100,000 miles or more, though hot climates, towing and old coolant shorten that.

Should I replace the thermostat with the radiator?

Yes, it is a small extra cost while the system is already drained.

Can I drive with a leaking radiator?

Only a short distance while watching the gauge. A small leak can become a large one without warning.

Do I need to flush the system when fitting a new radiator?

It is a good idea, especially if the old coolant was dirty or the wrong type.

Why is my new radiator not cooling?

Usually trapped air, a stuck thermostat, a weak fan or a failing water pump.

Can stop-leak products fix my radiator?

They can seal tiny seeps short-term, but they can also clog the heater core and new parts. A proper repair is better.

Do you ship radiators and fans worldwide?

Yes. Large parts are packed carefully. See shipping, warranty and returns.

Why Buy Cooling System Parts From Easy Life Auto Parts

Every listing shows OE references, our team checks fit by VIN through the contact page, and we ship worldwide with tracking on the track order page. Pair your order with belts and hoses, gaskets and seals, car AC and heater parts and engine parts to finish the job in one go. Questions? Check our FAQ.

To learn more about the science, read about engine radiators on Wikipedia. Then choose the cooling system parts that keep your engine at the right temperature, mile after mile.
