Stainless Steel Exhaust Header for Toyota Supra MK4 3.0L Non-Turbo (1993-1998)

If you're hunting for a Toyota Supra exhaust header that actually fits your car, the first thing to nail down is whether you're running the naturally aspirated 3.0L or one of the twin-turbo variants. This header is built specifically for the NA engine in the 1993-1998 Supra MK4. The non-turbo 2JZ-GE breathes through a completely different exhaust layout than the turbo 2JZ-GTE, so a header designed for one will never bolt up cleanly on the other. If you own the naturally aspirated car, this is your part. If you're running a turbo Supra, keep looking, because this manifold's flange, runner layout, and collector geometry are matched to the NA cylinder head and won't line up with turbo-spec ports.

Why the Naturally Aspirated Supra Needs Its Own Toyota Supra Exhaust Header

People cross-shop these two engines all the time because they share a family name and a lot of internal architecture, but the exhaust side is where they really part ways. The turbo 2JZ-GTE routes exhaust gas into a pair of turbochargers mounted close to the head, so its manifold is short, compact, and built around turbine flanges. The non-turbo 2JZ-GE has no turbos to feed, which means the factory manifold (and any header built to replace it) is designed purely to scavenge exhaust gas efficiently and get it out to the rest of the system with as little back pressure as possible. That's the whole point of upgrading to a header like this one in the first place: the stock cast-iron manifold on the NA car is restrictive, heavy, and prone to cracking after years of heat cycling. A mandrel-bent stainless header opens up flow, sheds a meaningful amount of weight over the front of the engine, and tends to wake up throttle response and mid-range pull in a way you can actually feel on a naturally aspirated engine that doesn't have boost to fall back on.

A header that's "close enough" on paper can still leave you fighting clearance issues or a collector that dumps into the wrong size downpipe. Everything here is built around the NA-specific port spacing and flange dimensions, so you're not stuck massaging brackets or drilling new holes to make it work.

Built to Last: Material and Construction

The header is fabricated from T-304 stainless steel, which is the grade most performance shops reach for when a part is going to live directly under the exhaust ports and see constant heat cycling for years. It resists scaling, discoloration, and rust far better than aluminized or mild steel, so you're not looking at a header that turns brown and flaky after one winter. The tubes are computerized mandrel-bent rather than crush-bent, which keeps the inner diameter consistent through every curve instead of pinching down at the bends the way cheaper crush-bent headers do. Every joint is TIG-welded by hand, which gives you clean, consistent beads and a much lower chance of a pinhole leak showing up down the road. The mounting flange is CNC-machined rather than stamped or hand-cut, so it sits flat against the head and seals properly with a standard gasket instead of requiring you to shim or re-surface anything to stop a leak.

None of this is decorative. A header that isn't dimensionally consistent flows worse than the part it replaced, and a flange that isn't flat will leak and leave you chasing a tick under load.

Specifications

• Fitment: 1993-1998 Toyota Supra MK4, naturally aspirated (non-turbo) 3.0L only — not compatible with turbo Supra models
• Inlet / Outlet: 1.50" / 2.50"
• Primary piping: 1.50" diameter across 6 mandrel-bent manifold runners
• Merge piping: runners collect down to 2.00" on the two outlet-side pipes
• Port shape: standard round ("O") port
• Port inner diameter: 1.4 inch
• Collector diameter: 2.25 inch
• Outlet diameter: 1.9 inch

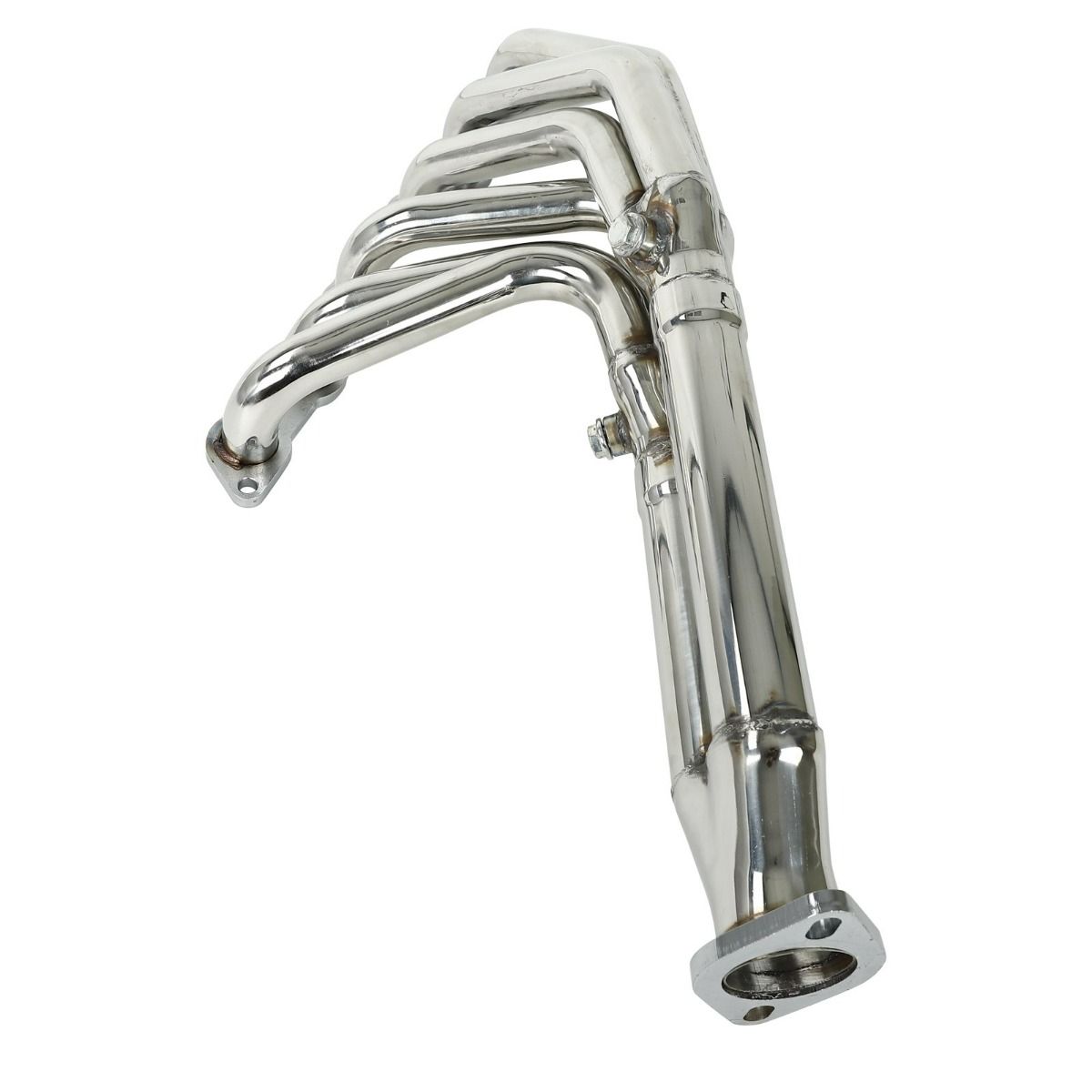

• O2 sensor bungs: 2, pre-installed

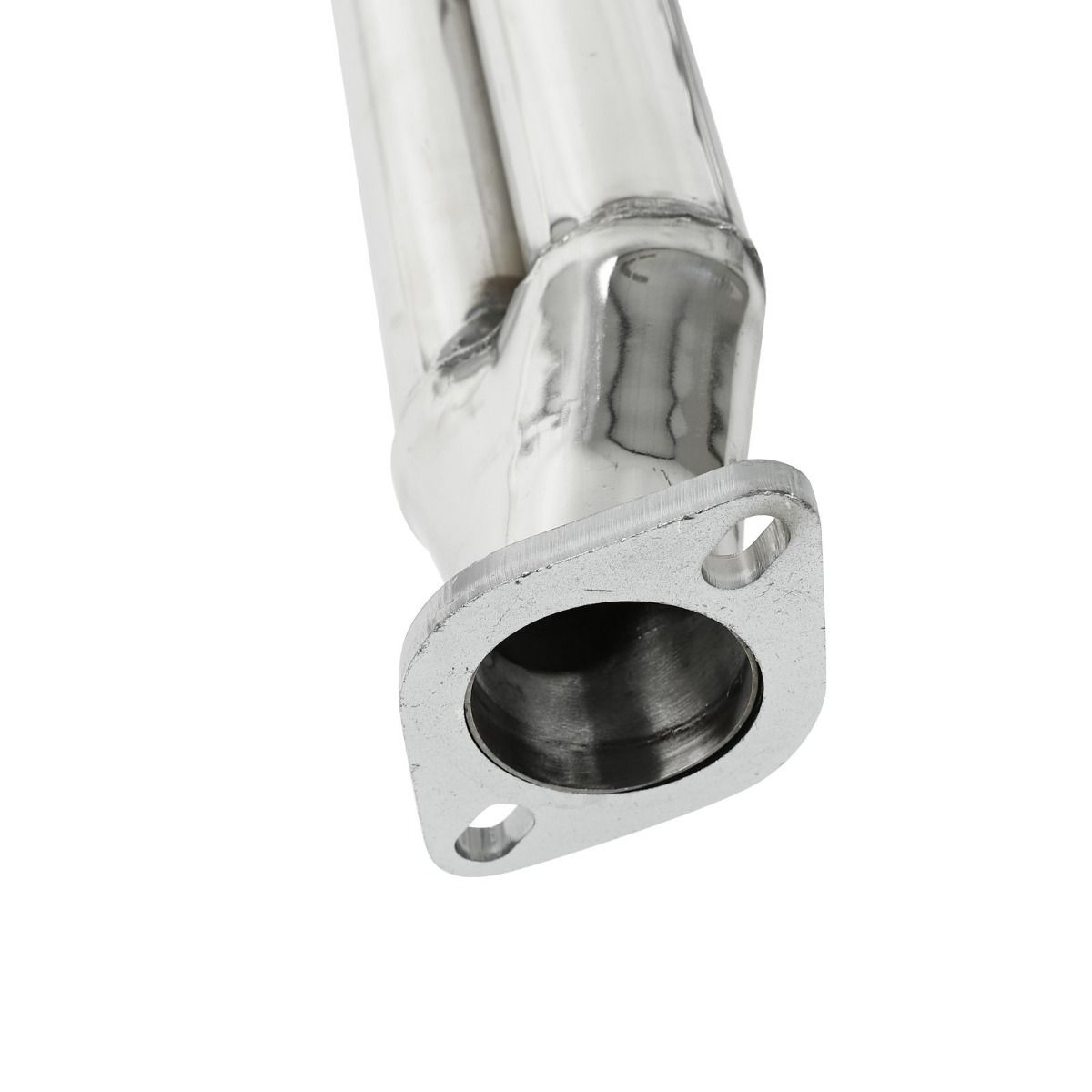

• Flange thickness: 3/8 inch, CNC-machined
• Material: T-304 stainless steel
• Construction: computerized mandrel-bent tubing, hand TIG-welded joints

Installation Notes

Because the flange is machined to spec and the port sizing matches the NA head, this goes in the same way the factory manifold came off, just with a header instead of a heavy cast piece in your hands. Start with a fresh gasket at the head and give the flange bolts a light coat of anti-seize before torquing them down, since that junction sees the most heat in the whole system. The two O2 bungs are already welded into the collector area, so you're not stuck cutting and welding your own bungs to get your sensors back in place. If your downstream piping was built for the factory manifold's outlet, check it against the 1.9 inch outlet here before bolting everything back up, since aftermarket midpipes vary quite a bit even on the same car.

If you want more background on how headers are engineered and why runner length and collector design matter for flow, the Wikipedia entry on exhaust manifolds is a solid, neutral overview of the engineering behind it.

Ordering, Support, and Peace of Mind

We know buying an exhaust header sight unseen for a 30-year-old car can feel like a gamble, especially with how much garbage fitment data floats around for these platforms. If you have questions about this Toyota Supra exhaust header before you buy, our team is easy to reach through our contact page, and a lot of the common questions about fitment, gaskets, and hardware are already answered on our frequently asked questions page. Every header we sell is backed by our warranty policy, so you're covered if something isn't right out of the box.

Once you've placed an order, you can check our shipping information page for handling times, and use our order tracking page to see exactly where your package is. If you're working on other parts of your Supra build and don't see what you need, our request-a-part page lets you tell us what you're after so we can try to source it. You can also browse the rest of our Exhaust & Emissions collection for cats, midpipes, and gaskets to finish the system, or check our full Toyota parts collection if you're sourcing more than just the exhaust for your Supra.

This header exists for one reason: to give naturally aspirated Supra owners a direct-fit, well-built alternative to a tired factory manifold, without any of the guesswork that comes with generic "fits most" listings. If your Supra is the NA 3.0L, this is built for exactly that engine, and nothing else.
