Engine Valve Cover With Gasket For 2010-2012 Hyundai Genesis Coupe 2.0T, OE 224102C400

An Engine Valve Cover for the Genesis Coupe

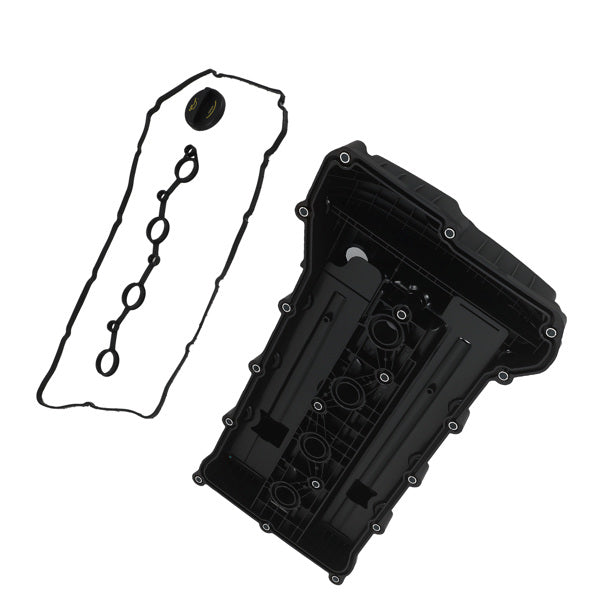

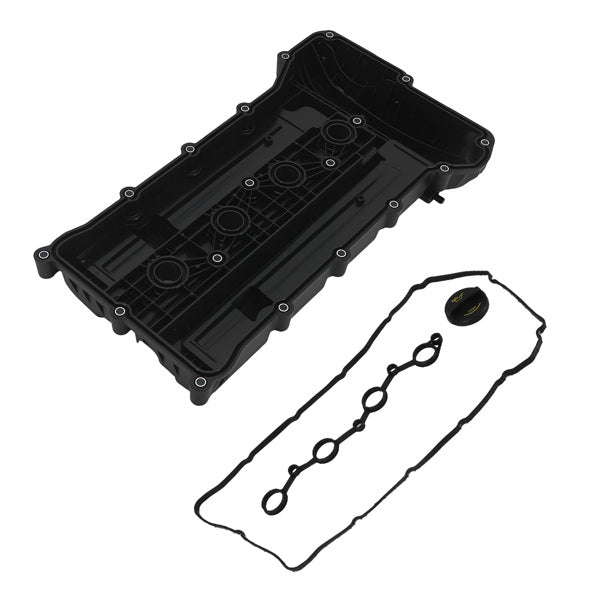

This is an engine valve cover with gasket built for the 2010-2012 Hyundai Genesis Coupe 2.0T, cross-referenced to part numbers 224102C400 and 224412G000. If you're noticing an oil smell in the cabin, oil residue around the top of the engine, or a burning oil smell after driving, a cracked or warped valve cover on this turbocharged four-cylinder is a common cause.

Why Valve Covers Fail on the 2.0T

The Genesis Coupe's 2.0-liter turbocharged four-cylinder, known by its engine code G4KF, runs hotter under the valve cover than a naturally aspirated engine of similar size, since turbocharged engines generate more underhood heat that the plastic valve cover and its gasket have to tolerate over years of heat cycling. That repeated expansion and contraction is what eventually causes the plastic to warp slightly or the gasket material to lose its seal, letting oil seep out along the cover's mating surface even when the engine itself is otherwise healthy.

Key Features

• Cross-referenced to part numbers 224102C400, 22410-2C400, 224412G000, 22441-2G000

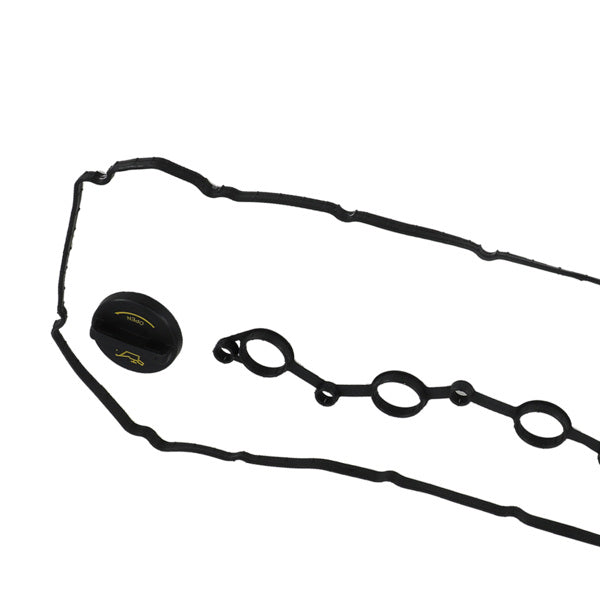

• Includes gasket, oil baffles, and grommets
• Includes oil filler cap
• 18 mounting holes matching factory design
• Made from durable, heat-resistant plastic

Specifications

• Type: Valve cover with gasket
• Engine: 2.0L turbo, engine code G4KF
• Cylinder head type: DOHC
• Material: Plastic
• Mounting holes: 18
• Warranty: 1 year
• Condition: New

Compatibility

Fits the 2010-2012 Hyundai Genesis Coupe with the 2.0T engine. Because the Genesis Coupe was also offered with a 3.8L V6 during this generation, it's worth confirming your specific Coupe has the turbocharged 2.0-liter four-cylinder before ordering, since the V6 uses an entirely different cylinder head and valve cover.

Signs Your Valve Cover Needs Replacing

A failing valve cover or gasket on the Genesis Coupe typically shows up as visible oil residue around the top of the engine near the cover's edges, a burning oil smell after driving that comes from oil dripping onto hot exhaust components, or in more noticeable cases, an oil smell inside the cabin from vapors drawn in through the ventilation system. Because a slow oil leak from this area can be easy to miss during a quick visual check, wiping the area clean and checking again after a short drive is a reliable way to confirm the leak's source.

Why Owners Replace the Complete Cover and Gasket Together

Replacing just the gasket while reusing an old, warped valve cover often leads to a repeat leak within a short time, since a cover that has already deformed slightly from years of heat cycling won't seal evenly against a new gasket no matter how carefully it's installed. Replacing the complete cover along with a fresh gasket addresses both potential failure points at once, which is why most owners treat this as a single repair rather than trying to save money by reusing the old cover.

Installation Notes

Installing this valve cover means disconnecting any hoses, wiring, or coil packs mounted on or near the cover, removing the mounting bolts in the sequence specified by the factory service manual, and cleaning the mating surface thoroughly before setting the new cover and gasket in place. Because overtightening plastic valve cover bolts can crack the cover or cause an uneven seal, torquing each bolt to the specified value in the correct sequence rather than by feel is worth the extra care.

Ordering Information

This valve cover and gasket is in stock and ships ready to install. Our Shipping Information page covers current timelines, and our Warranty and Returns pages explain what to do if anything isn't right on arrival. Not sure this matches your specific Genesis Coupe engine? Our Request a Part page is the fastest way to confirm before you order.
