Hyundai Santa Fe Control Arms Kit (2007-2012) - 8-Piece Front Suspension & Steering Kit, Also Fits Kia Sorento 2011-2013

If your Santa Fe has started knocking over speed bumps, drifting around in its lane on the highway, or wearing the front tires on the inside edge, worn front lower control arms are one of the first things to check. This kit gives you new Hyundai Santa Fe control arms for the 2007-2012 model years, plus the tie rods and sway bar links that usually wear out right alongside them. It also fits the 2011-2013 Kia Sorento, which shares the same front suspension.

We put this together as a full 8-piece kit for a simple reason. By the time a Santa Fe has enough miles on it to need control arms, the tie rod ends and links are almost always tired too. Doing them all at once means you take the front end apart one time, get one alignment, and you're done, instead of chasing a new clunk every few months.

Why Hyundai Santa Fe Control Arms Wear Out

The Santa Fe is a mid-size SUV that a lot of people use as a family hauler, and the front lower arms carry a big share of that weight every time you brake or hit a bump. Over time the rubber bushings dry out and tear, and the ball joint picks up play. You'll usually notice a dull clunk at low speed, a vague feeling in the steering, or the car shifting a little when you come to a firm stop. Left alone, it gets worse and starts chewing through tires.

Each arm in this kit comes with the ball joint and bushings already installed, so there's no pressing involved. You unbolt the old arm and bolt in the new one. If you want a deeper look at the warning signs, our guide to bad control arm symptoms walks through each one and how to check for it at home.

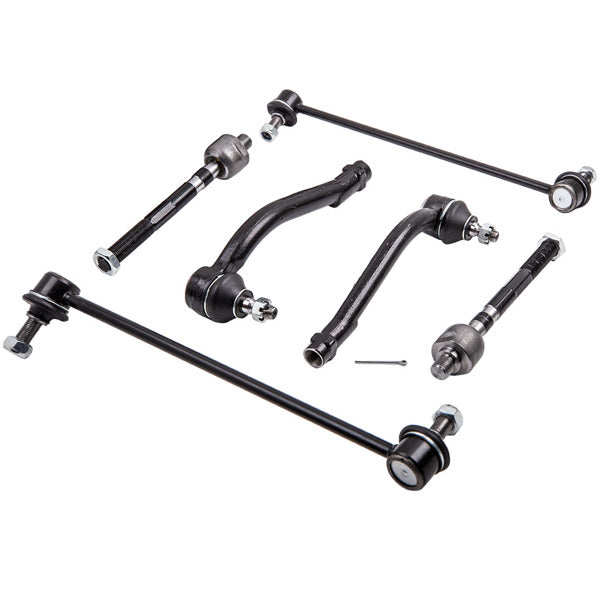

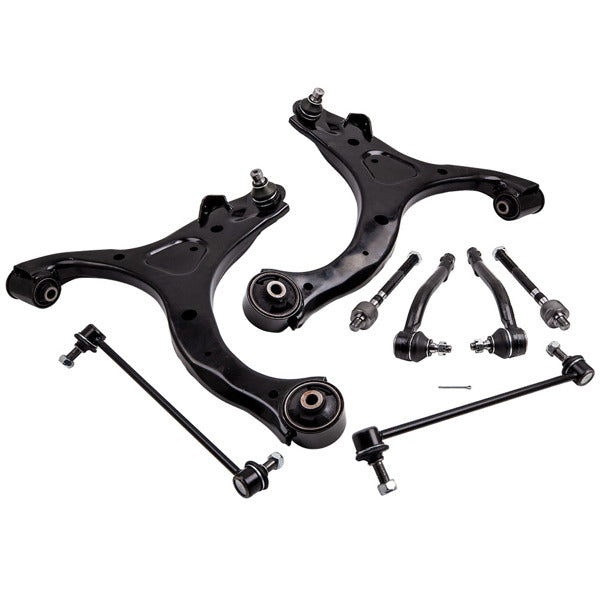

What's in the Box

• 2x front lower control arms with ball joints (left and right)

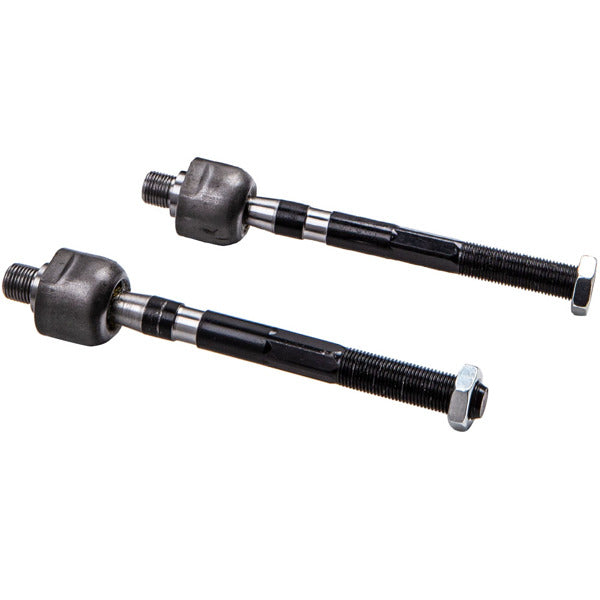

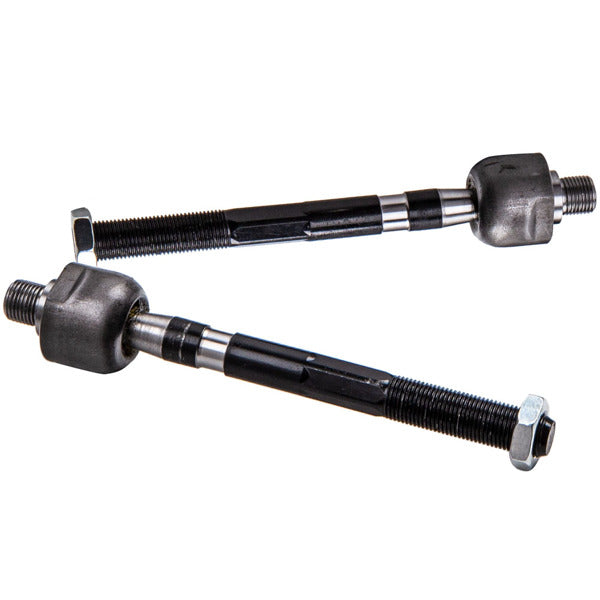

• 2x front inner tie rods

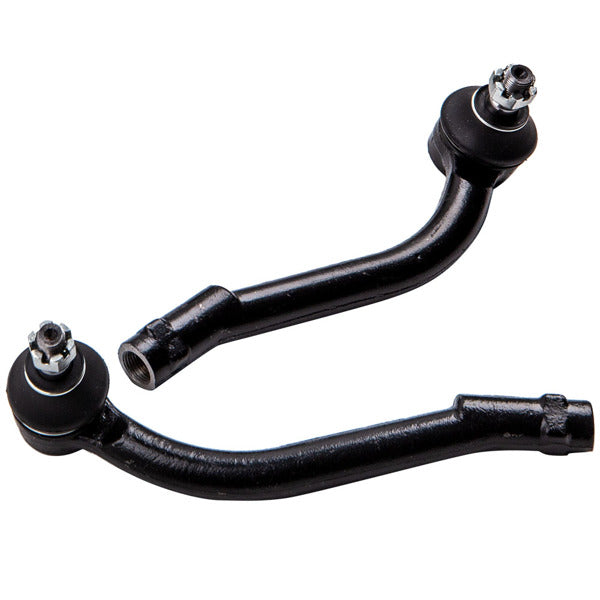

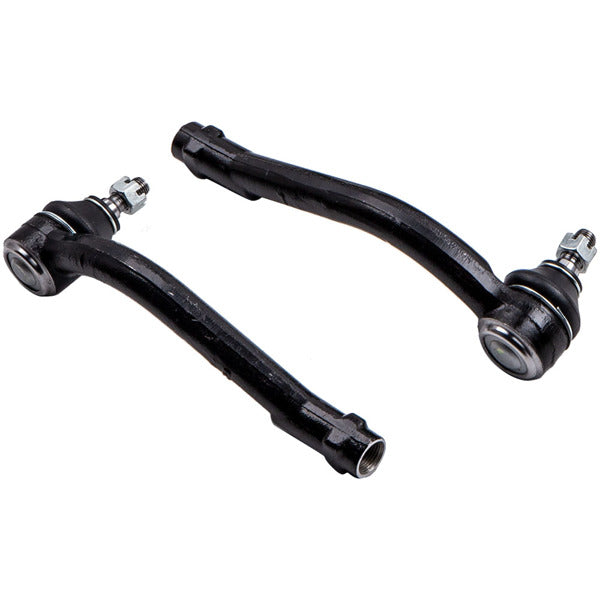

• 2x front outer tie rod ends
• 2x front sway bar links

Specifications

• Fitment: Hyundai Santa Fe 2007-2012; Kia Sorento 2011-2013
• Position: Front, left and right
• Material: Steel
• Finish: Black powder coat
• Kit size: 8 pieces
• Warranty: 2 years against manufacturing defects
• OE / cross-reference numbers: 512-50249R, 512-50250L, 512-50504R, 512-50505L, 521-637, 521-638, 545001U000, 545002B000, 545011U000, 545012B000, 548302B000, 548302B200, 548402B000, 548402B200, 568202B000, 568202B900, 577242B000, ES800035, ES800055, EV800231, K750204, K750205, K621685, K621686

Check the numbers above against your old parts or your VIN before you order. Santa Fe trims are close but not always identical, and two minutes of checking saves a return. If you're not sure, send us your VIN through our contact page and we'll confirm the fit for you.

Installing This Kit

This is a solid weekend job if you're comfortable with basic suspension work, or a quick one for any shop. A few tips that make it easier:

• Soak every bolt in penetrating oil the night before, especially on an older Santa Fe that's seen winter roads.
• Use a proper ball joint separator or tie rod puller instead of hammering on the knuckle.
• Count the turns when you remove the outer tie rods so you get close on toe before the alignment.
• Tighten the control arm bushing bolts with the suspension at ride height, not with the wheel hanging. This keeps the new bushings from being twisted and tearing early.
• Get a wheel alignment when you're done. Every time.

Our FAQ page covers the fitment and install questions we hear most often.

Shipping and Warranty

We ship to customers worldwide. Carrier estimates are on our shipping page, and you can follow your order on the tracking page once it's out the door. Coverage is laid out in plain language on our warranty page.

Working on other parts of your Hyundai? Browse our Hyundai parts or the full suspension collection. For more on how control arms fit into a suspension layout, Wikipedia's control arm article is a good technical read.

Bottom line: if your 2007-2012 Santa Fe has a clunky, wandering front end, these Hyundai Santa Fe control arms and the parts that come with them handle the whole job in one go.
