Heavy-Duty Spring-Loaded Mud Flap Hangers for Semi Trucks, 1-1/8" Bolt Spacing

Heavy-Duty Mud Flap Hangers for Semi Trucks

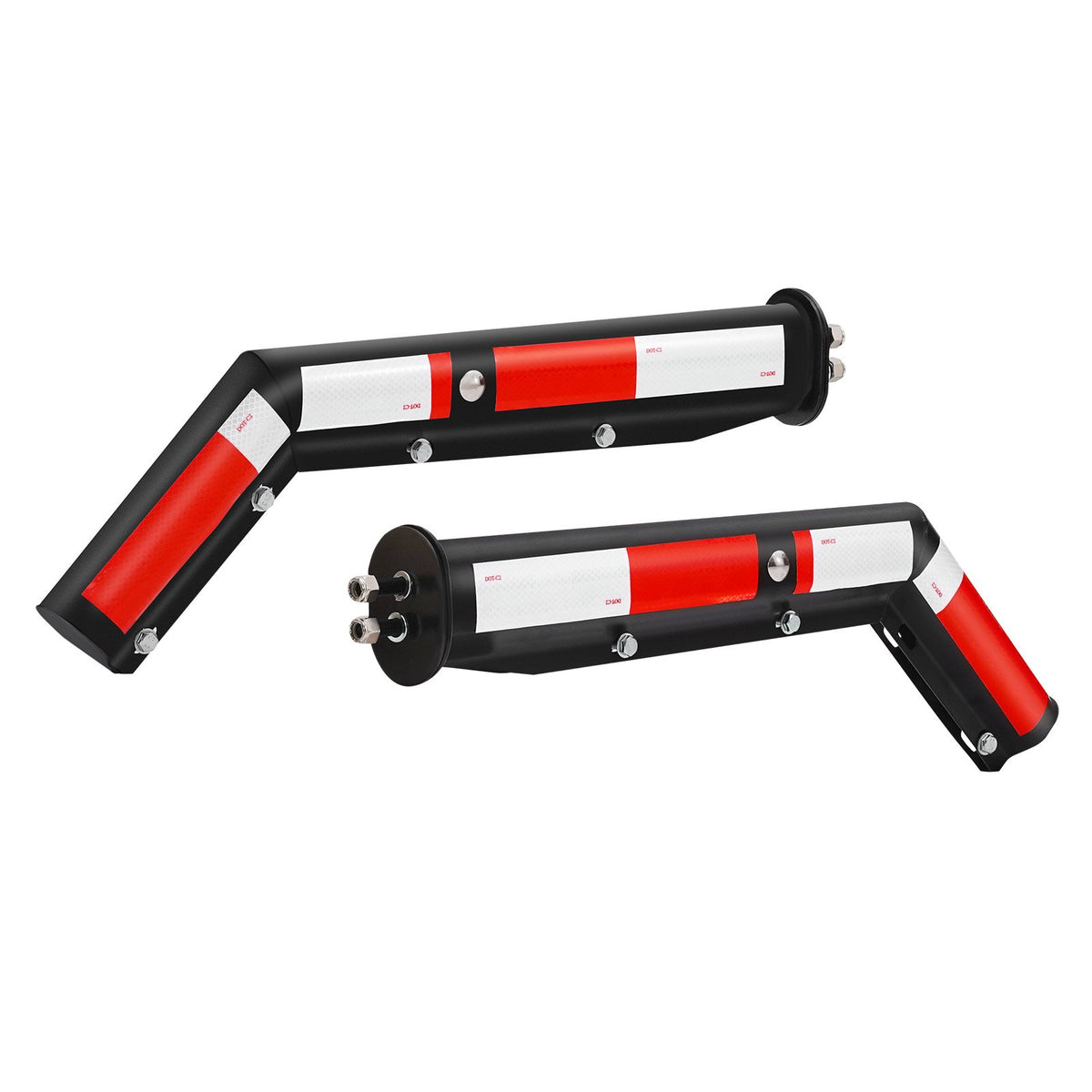

This is a pair of angled, spring-loaded mud flap hangers built for semi trucks with 1-1/8 inch bolt spacing, finished in corrosion-resistant black powder coat and fitted with reflective strips for added nighttime visibility. If your truck's mud flaps are hanging loosely, dragging on the ground, or rattling around from a worn or broken hanger, a fresh set of heavy-duty spring-loaded hangers is a straightforward fix that also adds some shock absorption most factory hangers don't have.

Why Spring-Loaded Hangers Outperform Rigid Ones

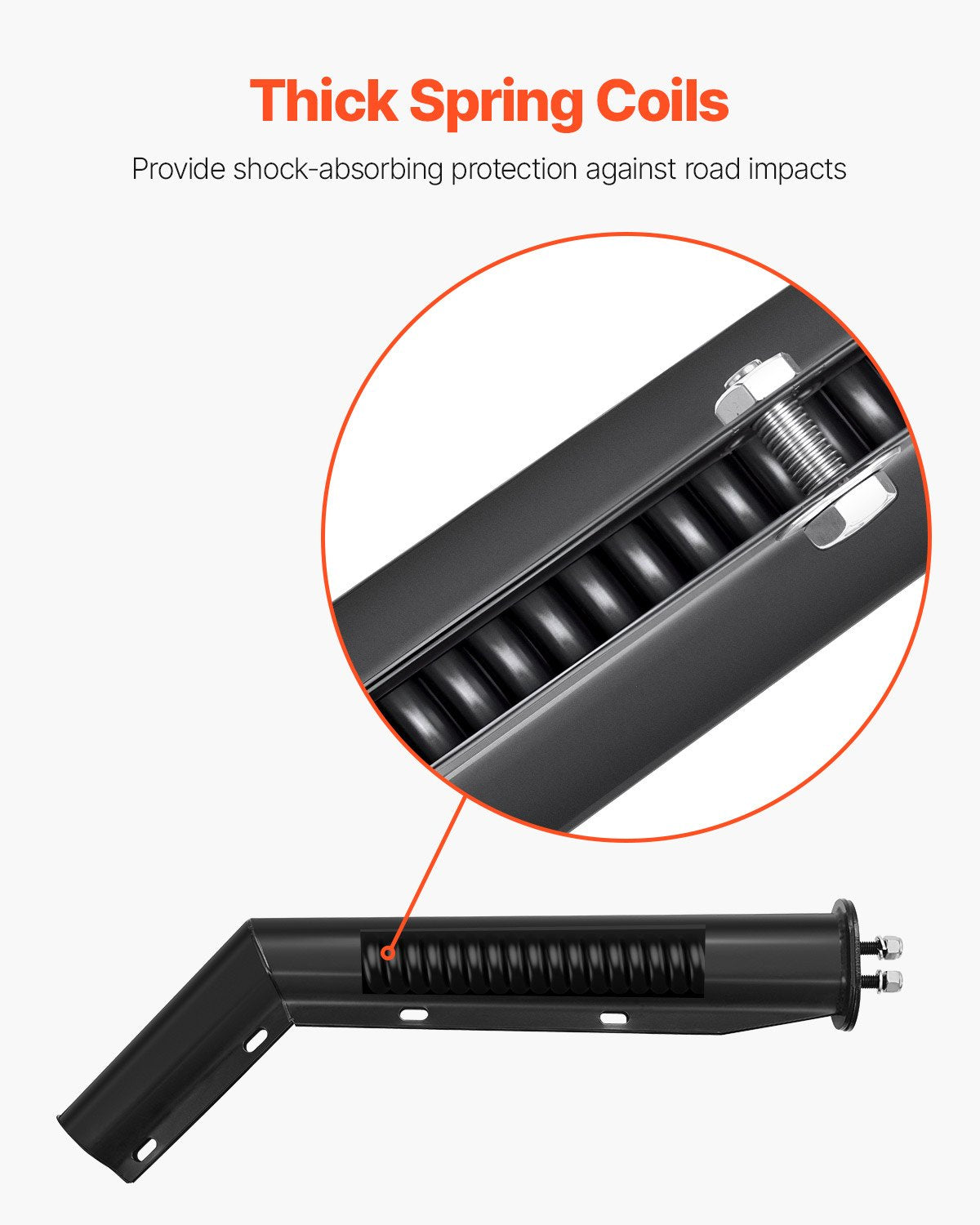

A rigid mud flap hanger holds the flap in a fixed position, which means every pothole, speed bump, or rough patch of road transfers its full impact directly into the hanger and its mounting bolts. These hangers use 8mm thick spring coils instead, letting the mud flap flex and absorb road impacts rather than transmitting all of that force into a solid bracket, which reduces both the noise from flap slap and the long-term stress on the mounting hardware that eventually causes rigid hangers to crack or bend.

Key Features

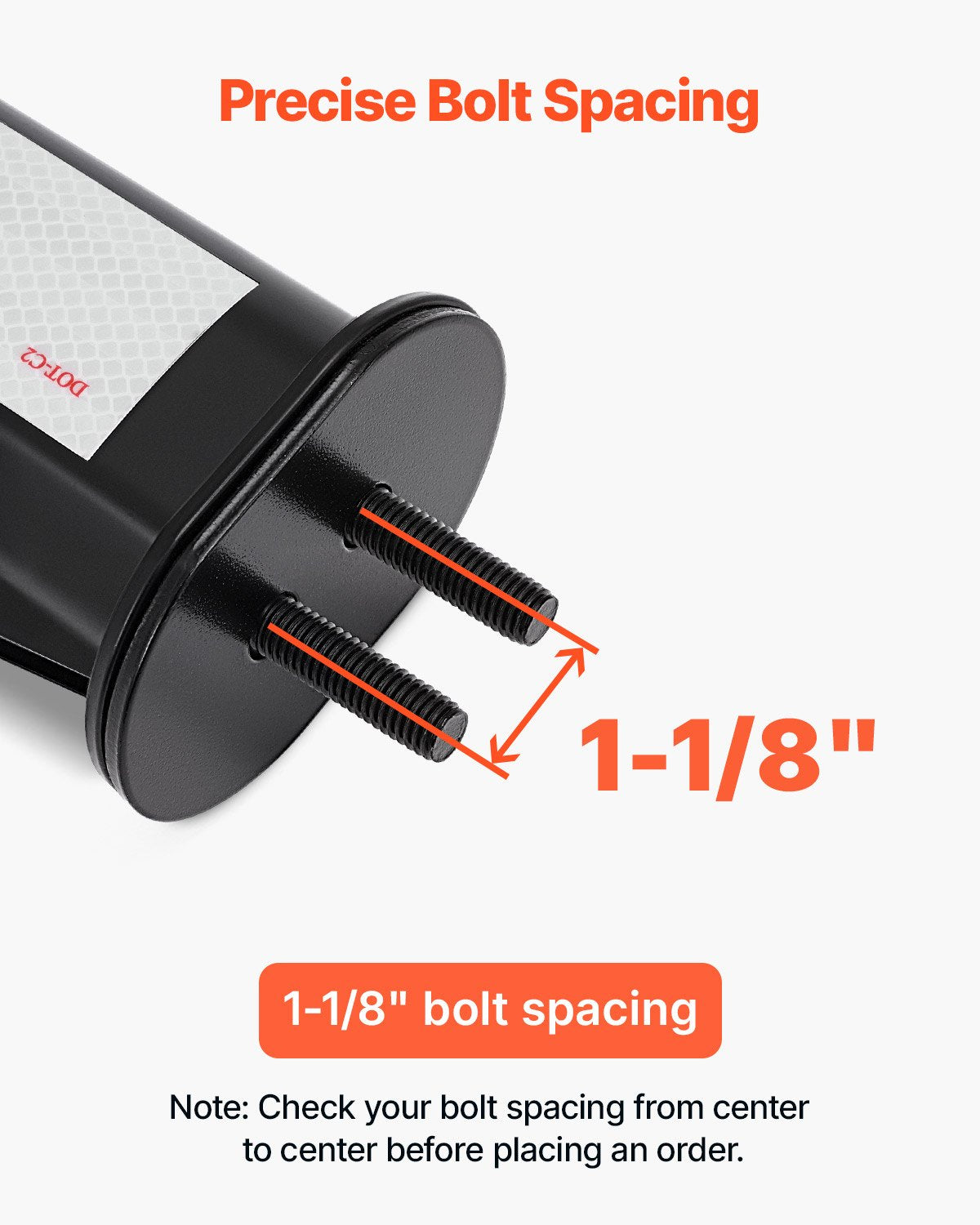

• Precise 1-1/8 inch bolt spacing for accurate mounting
• 8mm thick spring coils absorb road impact and reduce noise
• Black powder-coated carbon steel construction resists corrosion
• High-visibility reflective strips improve nighttime safety

Specifications

• Bolt spacing: 1-1/8 inch

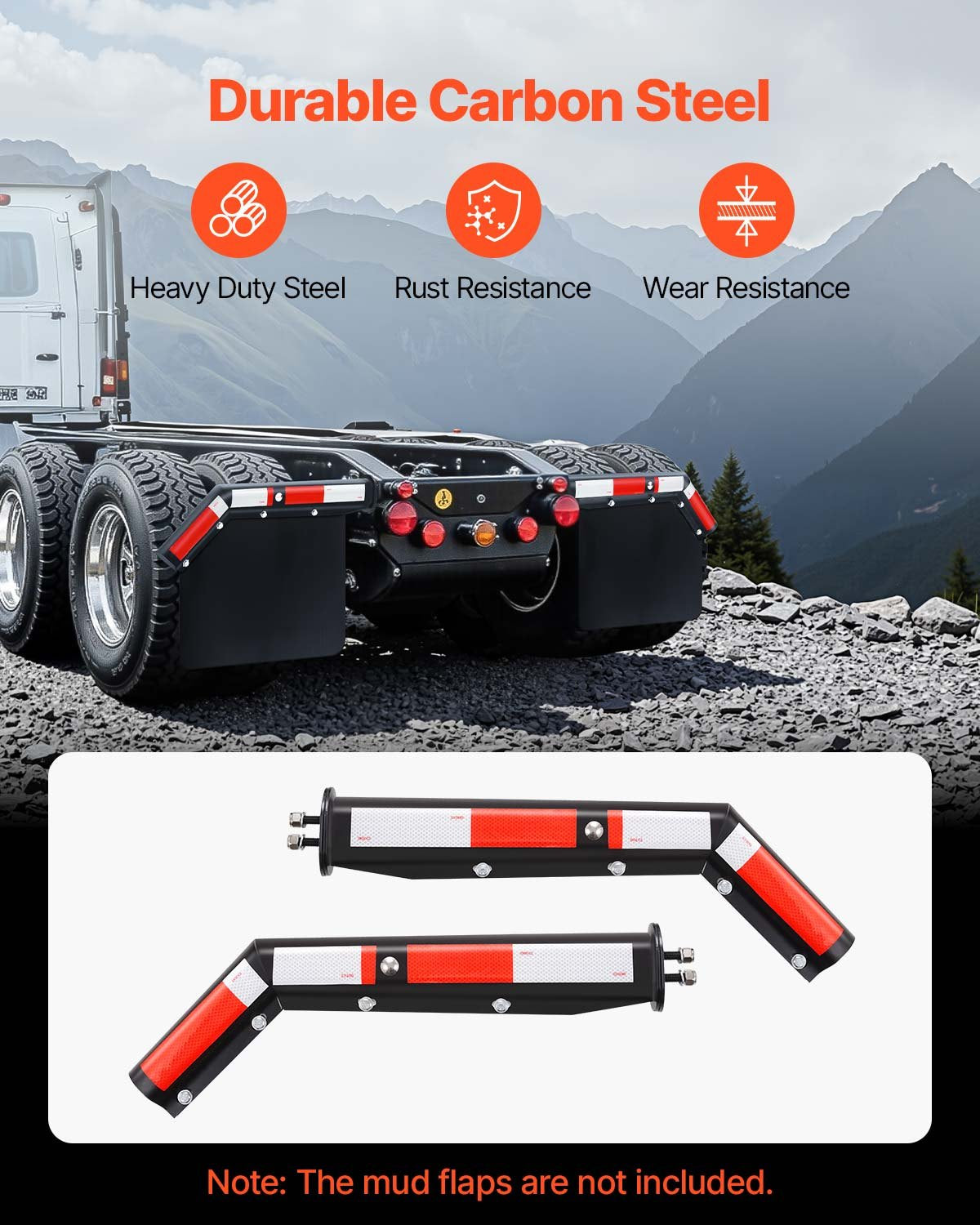

• Material: Carbon steel with black powder coat finish
• Spring thickness: 8mm
• Quantity: 1 pair (2 pieces)
• Condition: New

Compatibility

Fits semi trucks and other heavy-duty commercial vehicles using a standard 1-1/8 inch mud flap hanger bolt pattern. Because bolt spacing can vary across different truck makes and mud flap bracket setups, it's worth measuring your existing hanger's bolt spacing before ordering to confirm an exact match.

Signs Your Mud Flap Hangers Need Replacing

Worn or failing mud flap hangers typically show up as a mud flap that hangs unevenly, drags on the pavement, or swings and rattles noticeably at highway speeds, along with visible rust, bent brackets, or a spring that's lost its tension and no longer holds the flap firmly in place. Because mud flaps are mounted low and close to the road, their hangers take on constant exposure to road salt, moisture, and flying debris, which is why corrosion tends to be one of the more common reasons a hanger eventually needs replacing.

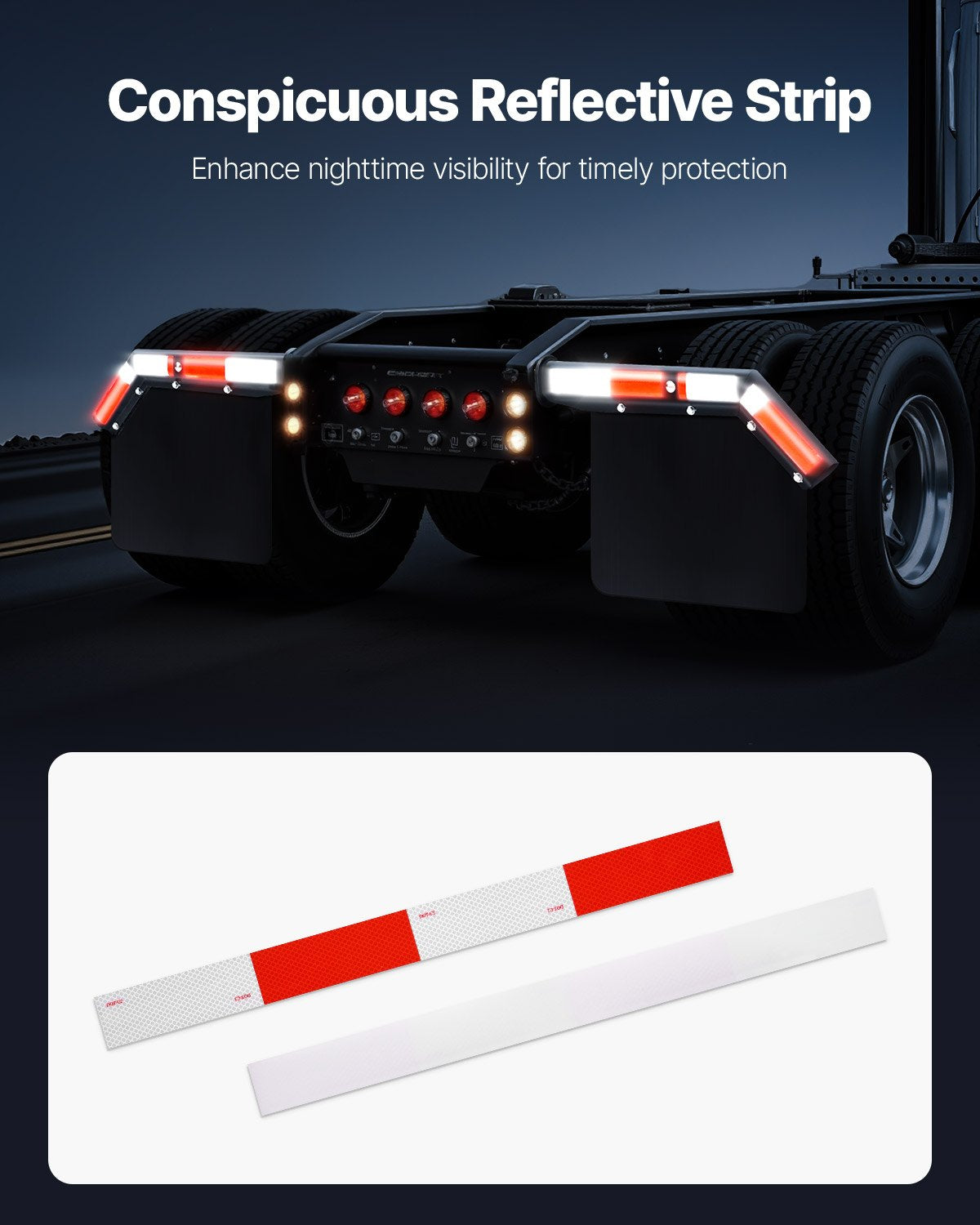

Why the Reflective Strips Matter for Fleet Safety

Beyond their mechanical job of holding the flap in place, these hangers also include reflective strips positioned to catch headlights from vehicles approaching at night or in poor weather, giving other drivers an additional visual cue about the rear corners of the truck and trailer. Because commercial trucks are frequently driven at night and in a wide range of weather conditions, this kind of added visibility is a small but meaningful safety improvement that a plain, non-reflective hanger doesn't provide.

Installation Notes

Installing these hangers means removing the old hanger's mounting bolts, positioning the new spring-loaded hanger against the 1-1/8 inch bolt pattern, securing it with the mounting hardware, and attaching the mud flap to the hanger's bracket. Because these hangers are designed to bolt directly into the existing pattern without modification, the job typically takes just a few minutes per side with basic hand tools.

Ordering Information

This mud flap hanger set is in stock and ships ready to install. Our Shipping Information page covers current timelines, and our Warranty and Returns pages explain what to do if anything isn't right on arrival. Not sure this matches your truck's bolt pattern? Our Request a Part page is the fastest way to confirm before you order.

Related Parts

This mud flap hanger set is listed in our Truck & Commercial Parts collection, along with our Body & Exterior collection, where you'll find other exterior components for semi trucks and commercial vehicles.
