4-Piece Engine & Transmission Mount Set For 2012-2017 Toyota Camry L4 2.5L Automatic

An Engine and Transmission Mount Set for the Camry

This is a 4-piece engine and transmission mount set built for the 2012-2016 Toyota Camry L4 2.5L automatic, and the 2017 Camry L4 2.5L automatic in LE, SE, and XLE trim, cross-referenced to part numbers A4288, A62062, A62081, and A72004HY. If you're feeling more vibration through the cabin, hearing a clunk when you shift into gear, or noticing the engine shift noticeably under acceleration, worn engine and transmission mounts are a common cause on this generation of Camry.

Why This Set Covers Four Mounting Points

The Camry's 2.5L four-cylinder engine and automatic transmission are supported by several mounts working together rather than a single point, which is why this set includes the front motor mount, front right motor mount, torque strut mount, and transmission mount as a complete package rather than a single component. Because these mounts share the job of supporting the engine and transmission's combined weight while isolating vibration from the cabin, they tend to wear at a broadly similar rate on a given vehicle, and replacing the full set at once addresses the whole system rather than leaving an already-aged mount in place next to a new one.

Key Features

• Cross-referenced to part numbers A4288, A62062, A62081, and A72004HY

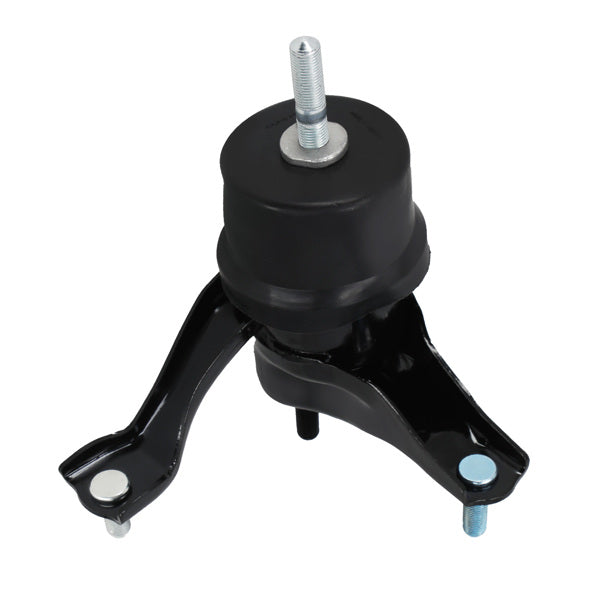

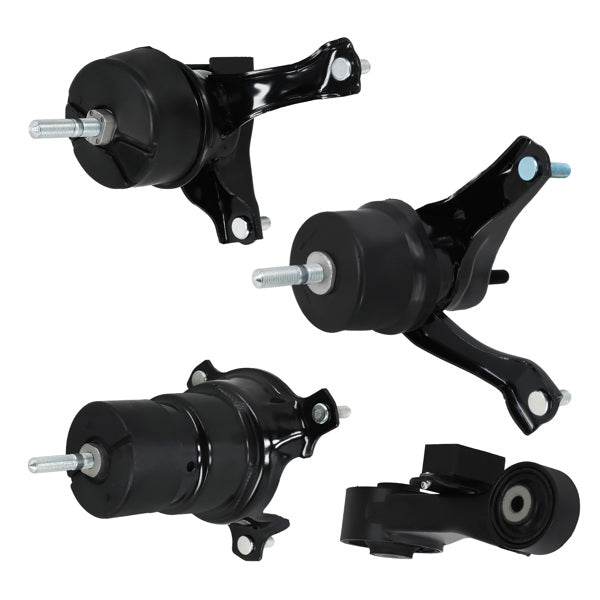

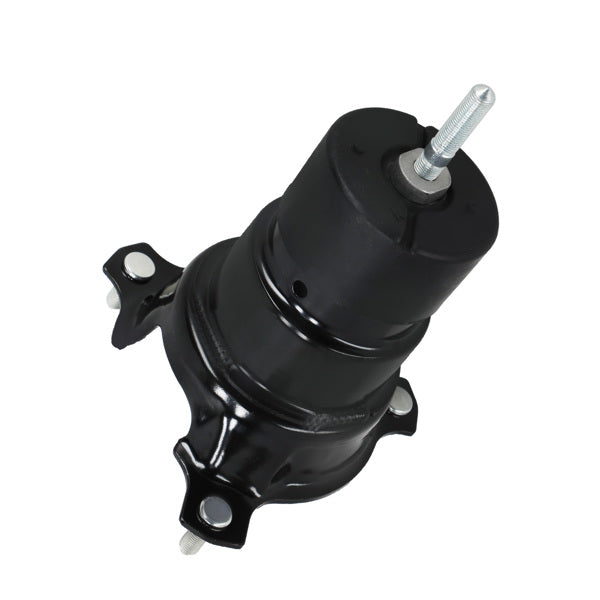

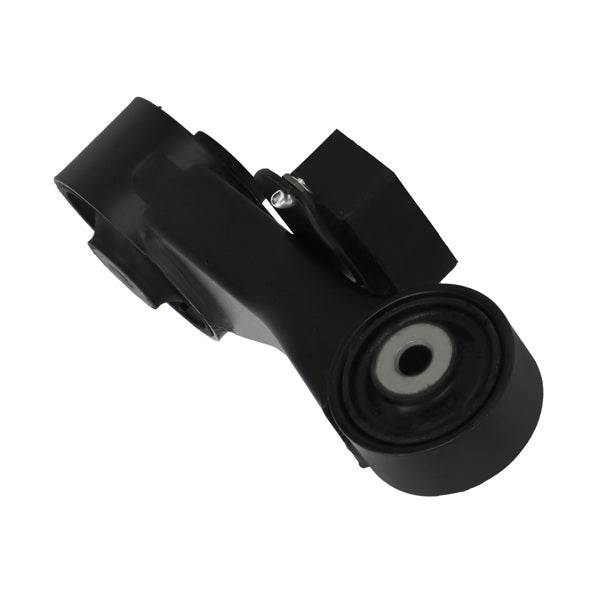

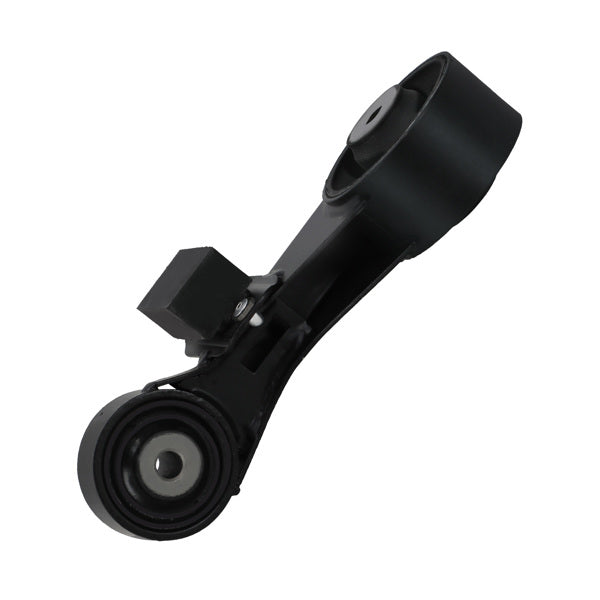

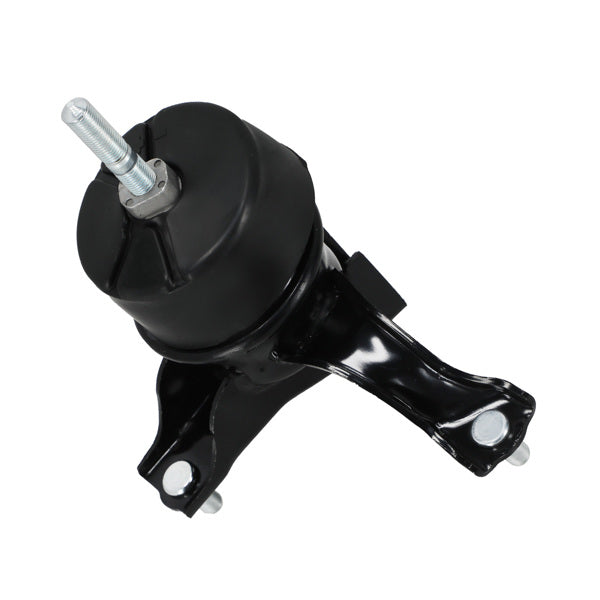

• Complete 4-piece set: front motor mount, front right motor mount, torque strut mount, and transmission mount
• Direct-fit replacement for the specified Camry configurations
• Backed by a 1-year manufacturer warranty

Specifications

• Type: Engine and transmission mount set
• Pieces included: 4 (front motor, front right motor, torque strut, transmission)
• Interchange numbers: EM9236, EM9588, EM7053, EM7016
• Warranty: 1 year
• Condition: New

Compatibility

Fits the 2012-2016 Toyota Camry L4 2.5L with automatic transmission, and the 2017 Camry L4 2.5L automatic in LE, SE, and XLE trim. Because the Camry from this generation was also offered with a V6 engine and, in later years, a hybrid powertrain that use different mounting points, it's worth confirming your specific engine and transmission before ordering to guarantee an exact match.

Signs Your Motor Mounts Need Replacing

Worn engine and transmission mounts on the Camry typically show up as a noticeable increase in vibration felt through the seat and steering wheel at idle, a clunk or thud when shifting from park into drive or reverse, or the engine visibly rocking under hard acceleration when viewed from the engine bay. Because these mounts also help keep the engine and transmission properly aligned with the rest of the drivetrain, letting them go too long after symptoms start can accelerate wear on nearby components like exhaust hangers and CV joints that weren't designed to absorb the extra movement.

Why Replace the Complete Set

Because the four mounts in this set share the job of supporting and stabilizing the same engine and transmission assembly, they generally experience similar mileage and driving conditions and tend to soften or crack at a comparable pace. Replacing all four together rather than swapping only the one that's failed most obviously avoids the situation where a fresh mount is doing its job properly while an aging one nearby continues to transmit vibration and allow excess movement, which is why a complete set is the standard approach for this kind of repair.

Installation Notes

Replacing this set means supporting the engine and transmission's weight with a jack and proper support fixture before removing each mount's bolts, working through the mounts one at a time so the powertrain stays correctly positioned throughout the job, and torquing each new mount to the manufacturer's specification once installed. Because the engine needs to be supported securely at every stage of this job, having the right jack and support equipment on hand before starting is worth doing rather than improvising partway through.

Ordering Information

This mount set is in stock and ships ready to install. Our Shipping Information page covers current timelines, and our Warranty and Returns pages explain what to do if anything isn't right on arrival. Not sure this matches your specific Camry's engine and trim? Our Request a Part page is the fastest way to confirm before you order.
